Validating financial documents at Scale, reducing manual processing and IT intervention

Now, let’s assume that one of our requirements during the Validation Process, is to make sure the First name we have stored in our ERP is the same as the one present in the file provided by the applicant to prove their identity.

These values will only be available after the request is received, and to be able to create a dynamic rule and validate it in runtime, we first need to tell the application how to get the information.

To do that, we used a JSON Path notation, which is a way to retrieve specific data from JSON files.

To explain it further, using the first request as an example, we can provide a path as a text for our application, such as: ’$.Applicant.FirstName’.

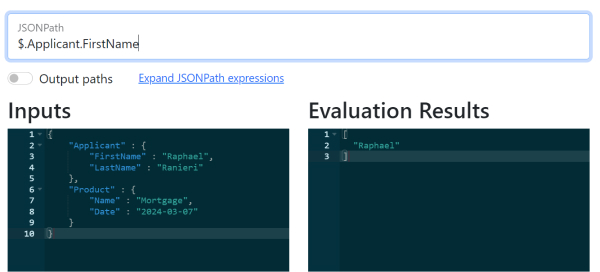

The result we would have in runtime when executing this path would be ‘Raphael’, as shown in the picture below:

With this in mind, we were able to develop a back office area to allow users to visually select the information they needed based on example requests, and store this information in a variable to be used by our validation engine in runtime.

In simpler words, the business users would access the back office, create and give a name to a variable and say the JSON path this variable should use to get the data in runtime.

Such as:

Variable Name – ‘ERP_FirstName’

Variable Path – ‘$.Applicant.FirstName’

Then, after all the variables were defined, we could provide a visual and simple way for the users to create rules using these variables.

Imagine having a dynamic formula that compares two variables and returns a true value if the expression is valid or a false value if they do not match. This formula is also configurable by the user in the back office. Just like:

‘ERP_FirstName’ = ‘OCR_FirstName’

With this base, we could escalate the application to support infinitely more complex scenarios, including conditional cases, text manipulations and even mathematical operations.

Some other examples of rules could be:

Replace(‘ERP_LastName’,’ERP_FullName’) = ‘OCR_FirstName’ – To replace a portion of a text and compare it to another text.

If(ERP_ApplicantAge > 21, ‘ERP_FirstName’ = ‘OCR_FirstName’, false) – To compare two texts only if the applicant is 21 years old or older.

These are still elementary operations, and in our real scenario, we had to evolve the rules engine a lot further, but the base concept is the same.

Additionally, ensuring the accuracy and reliability of OCR technology in extracting and interpreting data from digitised documents presented engineering complexity.

Furthermore, accommodating the diverse requirements of different document processing scenarios while maintaining scalability and performance was daunting. However, we successfully overcame these challenges through meticulous planning, innovative engineering solutions, and rigorous testing, resulting in a robust and efficient automated document validation application.

Technologies Used:

• OutSystems app development platform
• JSON/XML path for data capture
• Optical Character Recognition (OCR)
• C# integrations for expression evaluation

User-Friendly Interface:

Our solution features a user-friendly interface that enables business users to create validation rules effortlessly. By eliminating the dependency on IT for coding, users can focus on structuring rules for accurate validation, enhancing efficiency and productivity.

Conclusion:

Implementing automated document validation technology represents a transformative milestone in the loans and financial services processing industry. Our application has demonstrated remarkable efficacy in accelerating document validation processes by leveraging OCR technology and customisable validation rules.

By building a dynamic parser of JSON requests with a dynamic rules engine, and combined with the document recognition, we delivered tangible benefits such as significant reductions in processing time and labour costs and eliminating manual errors. Moreover, the flexibility of our back-office system enables organisations to adapt swiftly to changing business and regulatory requirements.

As businesses prioritise customer-centric digital services, our automated document validation application exemplifies technological innovation, driving efficiency, accuracy, and enhanced customer satisfaction. With successful implementation and tangible results, our application underscores the transformative potential of engineering and technology in reshaping traditional processes within the financial services sector.
